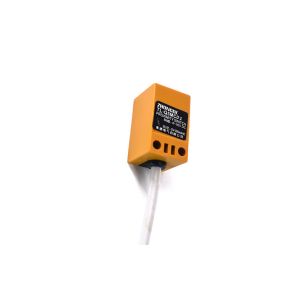

Magnetic Metal Inductive Prox Sensor Switch Normally Open Lightweight

Name: Magnetic Metal Inductive Prox Sensor Switch Normally Open Lightweight
Brand: Zhongde
Price: 1 USD

Model Number : TL-Q5MD1

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Name : Inductive Prox Sensor Switch

Feature : Lightweight

Material : ABS

Voltage : DC

Output Method : NPN/PNP

Induction Method : Normally open

Contact Now

Magnetic Metal Inductive Prox Sensor Switch Normally Open Lightweight

Feature

Simple operation with adjustable distance
Power supply reversal connection protection.
Long service life, high reliability.
Red LED indicates that it’s available to detect the sensor operating state.
IP67 protection structure (IEC specification)
Two-wire NPN/PNP normally open DC

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
